Overall Specfications
| Parameter | Details |
| Span | 5 Mtrs. to 50 Mtrs. |
| Capacity | 1 Ton to 100 Ton |
| Duty Class | Class I to Class IV (M1–M8) |
| Standards | IS:807 & IS:3177 |
| Operation | Pendant Pushbutton / Remote / Cabin |
Optional Features
- Radio Remote Control / Cabin Control
- Dual speed for all motion
- VFD in all motion
- Siren While Traveling a crane
- Load Cell with Display to weigh a Load or protection against overload
- Special Dimension Hook
- Other Reputed Brand Gearbox
- Drag Chain in Festoon system
- Protective Paints / Coating
Specifications
| Descriptions | Specifications |
| Capacity | 1t.,2t.,3t.,5t.,7.5t.,10t. |
| Area | Non-Hazardous/Hazardous as per customer requirement |
| Test Load | 125% of SWL |
| Height of Lift | 3 meters to 50 meters or as per customer requirements |
| IS Code | IS807, IS3177 |
| Type | Single Girder |
| Locations | Indoor/Out door |
| End Carriages | The End Carriages are welded construction type and fabricated from plates or Std. section type constructions. |
| Bridge Girders | The girders are of plate fabricated box type construction design to sustain all stresses arising due to vertical & lateral forces with impact to which they are subjected. The maximum deflection of the main girder is limited to 1/750 the span of live loads including the weight of the trolley or hoist. |
| Platform | M.S. Checkered plate/anti-skid plate’s full-length platform shall be provided on one side of the bridge girder in double girder crane |
| End Stopper | Steel end stoppers are provided on either side of the bring to limit the motion of the trolley. All the buffers will employ springs for shack absorption. |
| Steel | Steel confirming to IS-2062 or equivalent is used in the manufacturing of the main load bearing. (Mainly Essar or Sail make) |
| Wheel Base | As per span and IS code |
| L.T. Drive System | Twin drive type. |
| Main-Hoisting | 1 meter per minute to 20 meters per minute or as per customer’s requirements (micro speed will be provided on demand) |
| L.T. | 1 meter per minute to 120 meters per minute or as per customer’s requirements (micro speed will be provided on demand) |
| C.T. | 1 meter per minute to 120 meters per minute or as per customer’s requirements (micro speed will be provided on demand) |
| Ele. Motors | All motors are off S-4 duty, Squirrel cage ,40% CDF,150 S/hr., IP -55 with Class F insulation or as per required class and duty |
| Brakes | Electro-Hydraulic shoe type/ Electromagnetic Disc /AC & DC Electromagnetic Shoe type brake shall be provided in Hoisting L.T. & C.T. These brakes are automatically released when the motor circuit is on and is applied the motor circuit is off |
| Wire Rope & No. of aal | Selected as per crane capacity and IS Code he makes of wire rope will be used Usha-martin |
Standard Features
- Simple and optimum Design ensuring minimum dead weight, Wheel Load Headroom and easy to maintenance
- Easy to installation
- Reliable structure
- Higher efficiency to save power
- All motions are protected with Fail safe type brakes (which are applied when power supply is off and release when power supply is on.)
- All motions are protected with limit switches
- Rubber buffers are provided to extra protection against collision in case of limit switch failure
- Dustproof panel box with reputed make switch gear or as per customer’s approval
- 110 V Control voltage selected for protection of Crane operator against any electrical shock
- With electrical Interlocking to prevent simultaneous operation of opposite motion
- Using "C' Rail / I Section type C.T. & Push button Festoon system it’s give long life and trouble free operation
- Unbreakable, Handy, light weight PVC Pushbutton
- Coupling less L.T. & C.T. Motion up to 7.5 Hp, (Less mechanism less maintenance)
- VFD in Long Travel Motion, Smooth Start & Stop (Maximize the life of Mechanism)
- Own Make Gearbox so which are easy to maintenance and we can provide any parts at any time from our stock
- Platform with hand railing for easy, simple & safe maintenance of the crane extended partially or totally along the girder width
Safety Features
- Over Lowering or over hoisting prevention limit switch
- Hook Safety Latch
- Overload Relays
- Travelling limit switch
- Rubber buffer
- Brakes in Hoisting as well as c.t & L.T.
- Main Switch
- On/ off switch in push button /Emergency stop
- MCB /fuse
- All 4 core cables with Earth cable
- Maintenance platform
- Siren in goliath crane
- Anti-collision device when more than one crane on same bay
Packing & Forwarding
Pre-Sales Service
- One to one service guarantees you the best purchasing experience.
- Strong production capacity and professional workmen guarantee you the short delivery.
- Strict delivery inspection guarantees you the high quality products.
- The short delivery time.
After-Sales Service
- One year warranty for Cranes
- Providing free quick-wear part
- Low charge for continue maintenance when warranty is expired
- Exclusive engineer support at any time.
- Highly professional training to end-users
Double Girder Goliath Crane Manufacturers & Suppliers in India — Ganesh Engineering Co.
Ganesh Engineering Co. manufactures Double Girder Goliath Cranes for heavy-duty lifting in open areas and outdoor work sites. These cranes are perfect for industries that need strong, dependable material handling and a fixed overhead crane is not practical or achievable. Designed for easy movement, safe lifting and long term use.

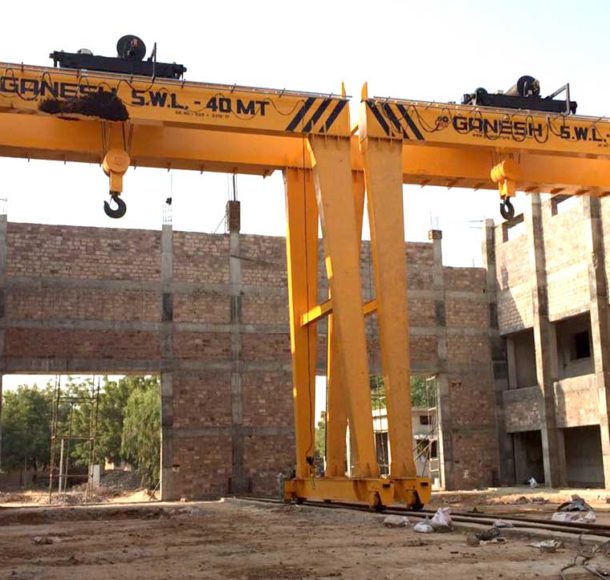

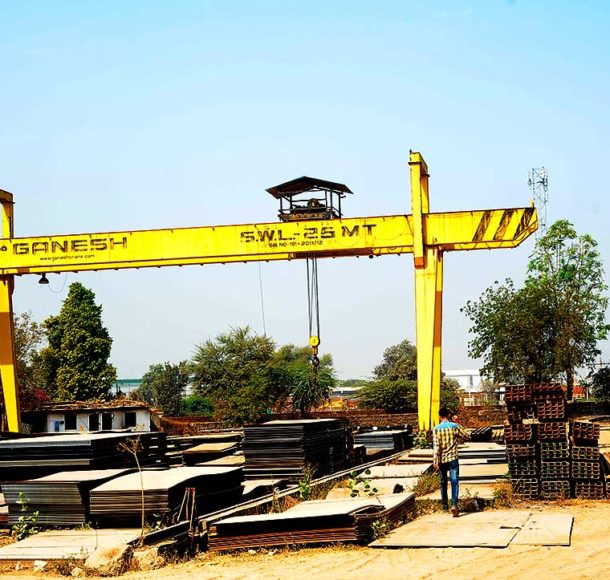

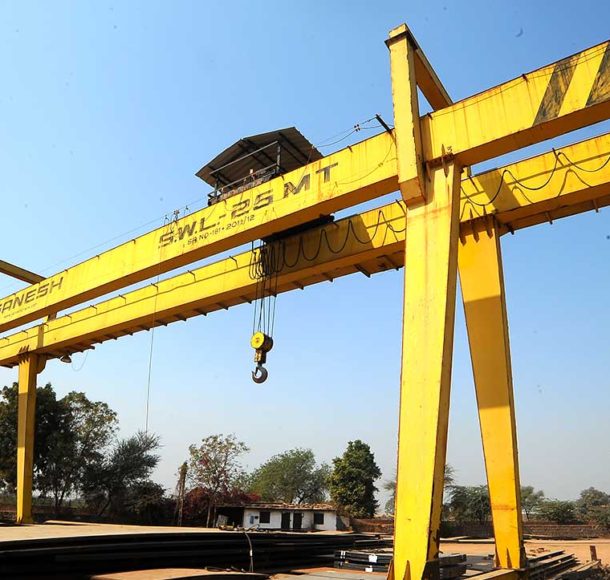

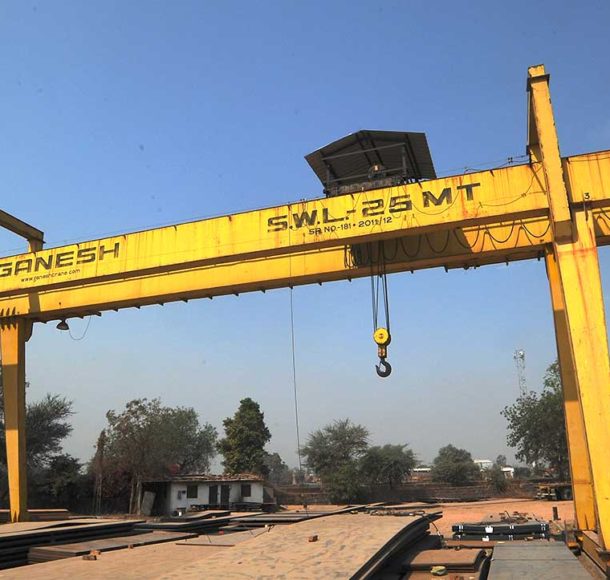

What is a Double Girder Goliath Crane?
It is a heavy-duty, self-supporting crane built on two parallel bridge girders mounted on two A-frame legs that travel on ground-level rails. Unlike overhead cranes that rely on a building’s runway structure, a goliath crane stands completely on its own.
The crab trolley mechanism sits on top of the two bridge girders and travels between them. This gives the crane higher hook height, greater lifting capacity, and more structural rigidity than a single girder design — making it the standard choice for the heaviest outdoor lifting applications.
It handles loads in three directions — vertically via the hoist, laterally via the crab cross travel, and longitudinally via the gantry long travel along the ground rails — covering the full working area with precision.
It is also known as a Double Girder Gantry Crane, Double Beam Goliath Crane, Heavy Duty Gantry Crane, or Portal Crane in different parts of the industry.
How Does a Double Girder Goliath Crane Work?
The crane operates on three basic motions that together give it complete coverage of the working area:
The crab hoist raises and lowers the load vertically with fail-safe braking on the hoist motor — the load stays exactly in place even if power is cut.
Crab Cross Travel — Lateral Movement
The crab trolley moves left and right on rails mounted on top of the two bridge girders, covering the full working span width.
Gantry Long Travel — Longitudinal Motion
The entire gantry structure travels forward and backward along the ground-level runway rails, covering the full length of the working area.
Double Girder Goliath Crane Applications
- Steel Plants, Rolling Mills, and Plate Yards
- Foundries, Forge Shops, and Heavy Fabrication Units
- Power Plant Erection and Turbine Handling
- Bridge and Civil Construction Sites
- Precast Concrete Yards and Segment Handling
- Railway Workshop and Maintenance Depots
- Shipyards and Dry Docks
- Container and Cargo Handling Yards
- Port and Jetty Heavy Lift Applications
- Defence Manufacturing and Maintenance Facilities
- Aerospace Component Handling
- Paper and Pulp Mills
- Wind Energy Component Handling
- Mining and Quarry Equipment Handling
- Transformer and Heavy Electrical Equipment Yards
Why Choose Us as Your Double Girder
Goliath Crane Manufacturer?
Outdoor Application Expertise
Goliath cranes work in conditions that overhead cranes never face — wind, rain, temperature variation, and heavy yard environments. We have been designing cranes specifically for these conditions since 2004. That site-level experience shows in how our cranes are built and how long they last.
Every Crane Tested to 125% SWL
Before any crane leaves our facility, it is load-tested to 125% of its Safe Working Load as per IS:807 and IS:3177. What you receive on site is a verified, tested crane — not just a manufactured one.
Custom Engineering From Day One
Yard layout, ground conditions, span, capacity, hook height, duty cycle, outdoor exposure — all of it goes into the design. We do not adapt a standard crane to fit your site. We engineer a crane around it.
In-House Gearbox Manufacturing
Our gearboxes are manufactured in-house at our Ahmedabad facility. Spare parts are available from our own stock — not subject to third-party lead times. For a crane that is working in a remote yard or on a critical project, that availability makes a real difference.
Delivery and Commissioning Support
We handle installation and commissioning wherever the crane is being set up — whether in Gujarat, another Indian state, or an export destination. The crane is handed over fully operational and tested on-site.
One Year Warranty and Ongoing Support
Every crane comes with a one-year warranty, free quick-wear parts during the warranty period, and dedicated engineer support at any time after that. Annual maintenance contracts are available for facilities that want scheduled servicing.
Frequently Asked Questions
What is a Double Girder Goliath Crane?
A Double Beam Goliath Crane is a self-supporting heavy-duty crane built on two parallel bridge girders mounted on A-frame legs that travel on ground-level rails. It requires no building runway structure and is designed for heavy outdoor lifting applications — from steel yards and construction sites to shipyards and power plants.
What is the difference between a Goliath Crane and a Gantry Crane?
The terms are used interchangeably in the industry. Both refer to self-supporting cranes that run on ground-level rails. In India, the term "Goliath Crane" is commonly used for larger, heavier outdoor cranes, while "Gantry Crane" is used more broadly. Both designs work on the same principle.
What is the maximum capacity of a Double Girder Goliath Crane?
We manufacture Double Beam Goliath Cranes of up to 100 tons capacity with spans up to 50 metres. For higher requirements, please contact us for a custom engineering assessment.
Why is a Double Girder Gantry Crane better than a Single Girder for heavy loads?
Two girders provide greater structural rigidity and allow much higher hook heights because the crab trolley sits on top of the girders rather than hanging below. This makes the double girder design the right choice for loads above 20 tons and high-frequency, heavy duty applications.
Can a Double Girder Goliath Crane work outdoors?
Yes — outdoor use is one of the main reasons these cranes are chosen. They are built with weatherproof components, appropriate coating, and IP-rated electrical equipment for outdoor environments. Coastal and chemical environment configurations are also available
Can the crane travel length be extended in future?
Yes. Because the crane runs on ground-level rails, extending the long travel length is relatively straightforward and significantly less expensive than extending an overhead runway structure.
What IS standards apply to Double Girder Goliath Cranes?
All our cranes are designed and manufactured as per IS:807 and IS:3177, and tested to 125% of SWL before dispatch.
Do you provide installation and maintenance for Goliath Cranes?
Yes — we provide complete installation and commissioning support, annual maintenance contracts, breakdown assistance, and spare parts from stock for all cranes we supply across India and for export customers.
What industries use Double Girder Goliath Cranes?
Steel plants, shipyards, power plants, heavy fabrication yards, construction sites, railway workshops, defence facilities, and any industrial environment where heavy loads need to be moved in open or semi-covered areas.
