Overall Specifications
| Parameter | Details |
| Span | 5 Mtrs. to 50 Mtrs. |
| Capacity | 1 Ton to 10 Ton |
| Duty Class | Class-I to Class-IV (M1-M8) |
| Operation | Pendant Pushbutton / Remote / Cabin |
Specifications
| Descriptions | Specifications |
| Area | Non Hazardous/Hazardous as per customer requirement |
| Test Load | 125% of SWL |
| Height of Lift | 3 meters to 50 meters or as per customer requirements |
| IS Code | IS807, IS3177 |
| Type | Single Girder |
| Locations | Indoor/Out door |
| End Carriages | The End Carriages are welded construction type and fabricated from plates or Std. section type constructions. |
| Bridge Girders | The girder is of plate fabricated box type construction design to sustain all stresses arising due to vertical & lateral forces with impact to which they are subjected. The maximum deflection of the main girder is limited to 1/750 the span of live loads including the weight of the trolley or hoist. |
| Platform | Two small length platform shall be provided |
| End Stopper | Steel end stoppers are provided on either side of the bring to limit the motion of the trolley. All the buffers will employ springs for shack absorption. |
| Steel | Steel confirming to IS-2062 or equivalent is used in the manufacturing of the main load bearing. (Mainly Essar or Sail make) |
| Wheel Base | As per span and IS code |
| L.T. Drive System | Twin drive type. |
| Main-Hoisting | 3.5 meter per minute (micro speed will be provided on demand) |
| L.T. | 20 meters per minute (micro speed will be provided on demand) |
| C.T. | 15 meters per minute (micro speed will be provided on demand) |
| Ele. Motors | All motors are off S-4 duty, Squirrel cage ,40% CDF,150 S/hr., IP -55 with Class F insulation or as per required class and duty |
| Brakes | Electro Hydraulic shoe type/ Electromagnetic Disc / Electromagnetic Shoe type brake shall be provided in Hoisting L.T. & C.T. These brakes are automatically released when the motor circuit is on and is applied the motor circuit is off |
| Wire Rope & No. ofaal | Selected as per crane capacity and IS Code he make of wire rope will be used Usha-martin |
Optional Features

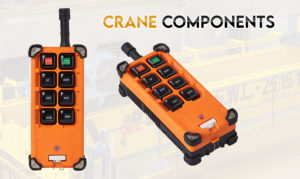

- 1. Radio Remote Control / Cabin Control
- 2. Dual speed for all motion
- 3. VFD in all motion
- 4. Siren While Traveling a crane
- 5. Load Cell with Display to weigh a Load or protection against overload
- 6. Special Dimension Hook
- 7. Other Reputed Brand Gearbox
- 8. Drag Chain in Festoon system
- 9. Protective Paints / Coating
Standard Features
- 1. Simple and optimum Design ensuring minimum dead weight, Wheel Load Headroom and easy to maintenance
- 2. Easy to installation
- 3. Reliable structure
- 4. Higher efficiency to save power
- 5. All motions are protected with Fail safe type brakes (which are applied when power supply is off and release when power supply is on.)
- 6. All motions are protected with limit switches
- 7. Rubber buffers are provided to extra protection against collision in case of limit switch failure
- 8. Dustproof panel box with reputed make switch gear or as per customer’s approval
- 9. 110 V Control voltage selected for protection of Crane operator against any electrical shock
- 10. With electrical Interlocking to prevent simultaneous operation of opposite motion
- 11. Using “C’ Rail / I Section type C.T. & Push button Festoon system it’s give long life and trouble free operation
- 12. Unbreakable, Handy, light weight PVC Pushbutton
- 13. Coupling less L.T. & C.T. Motion up to 7.5 Hp, (Less mechanism less maintenance)
- 14. VFD in Long Travel Motion, Smooth Start & Stop (Maximize the life of Mechanism)

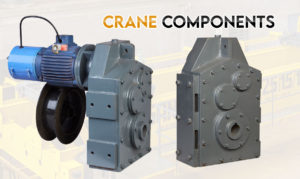

- 15. Own Make Gearbox so which are easy to maintenance and we can provide any parts at any time from our stock
- 16. Platform with hand railing for easy, simple & safe maintenance of the crane extended partially or totally along the girder width
Safety
- 1. Over Lowering or over hoisting prevention limit switch
- 2. Hook Safety Latch
- 3. Overload Relays
- 4. Travelling limit switch
- 5. Rubber buffer
- 6. Brakes in Hoisting as well as c.t & L.T.
- 7. Main Switch
- 8. On/ off switch in push button /Emergency stop
- 9. MCB /fuse
- 10. All 4 core cables with Earth cable
- Maintenance platform
- 11. Siren in goliath crane
- 12. Anti-collision device when more than one crane on same bay
Packing & Forwarding
Pre-Sales Service
- 1. One to one service guarantees you the best purchasing experience.
- 2. Strong production capacity and professional workmen guarantee you the short delivery.
- 3. Strict delivery inspection guarantees you the high quality products.
- 4. The short delivery time.
After-Sales Service
- 1. One year warranty for Cranes
- 2. Providing free quick-wear part
- 3. Low charge for continue maintenance when warranty is expired
- 4. Exclusive engineer support at any time.
- 5. Highly professional training to end-users

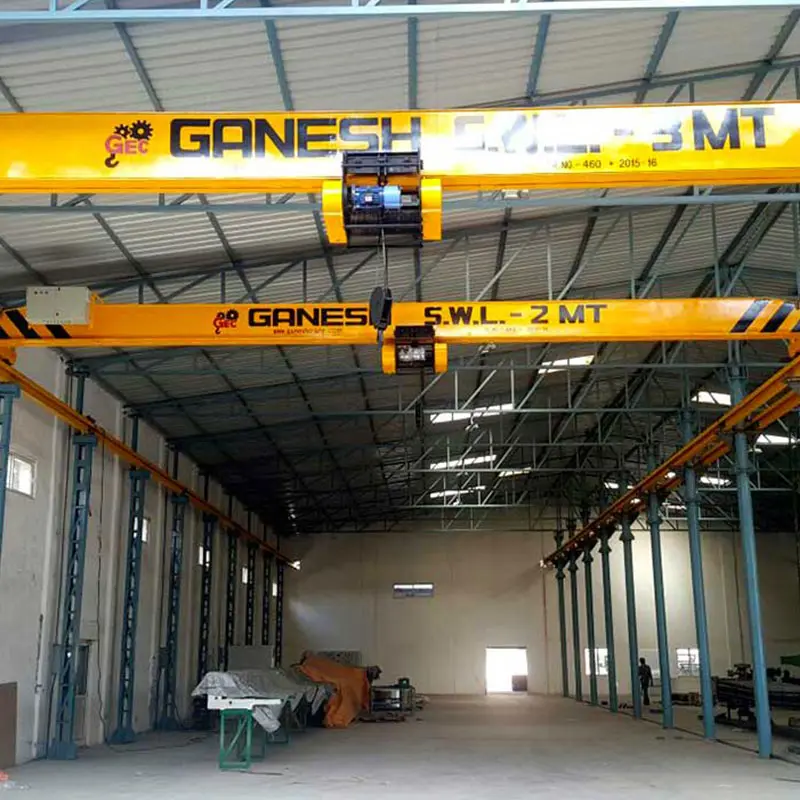

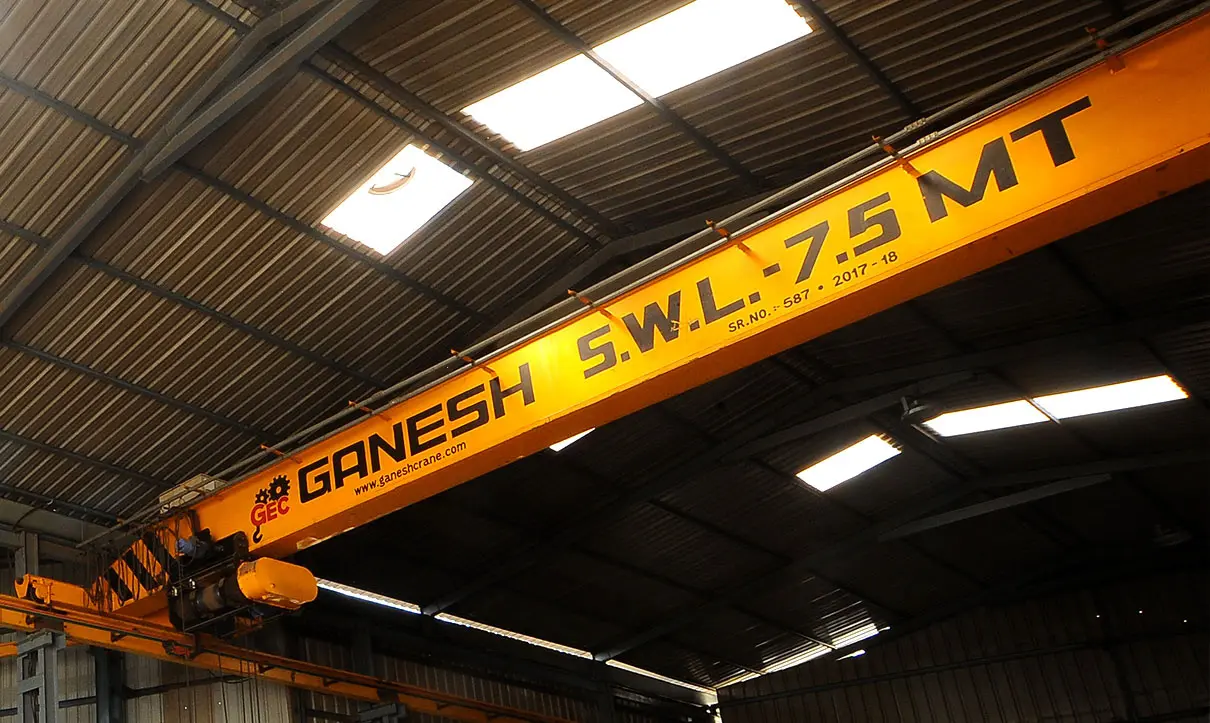

Single Girder EOT Crane Suppliers in India — Ganesh Engineering Co.
Are you looking for a lightweight, affordable Single Girder EOT crane? Ganesh Engineering Co. is your one stop solution. We manufacture high-quality cranes that are easy to install and operate. For workshops, small manufacturing units and places with moderate lifting requirements, this crane is often the more practical choice.
Every crane we build is engineered around your specific span, height, load requirement, and duty cycle. As one of the most experienced Single Girder EOT Crane manufacturers in India, we build every crane with the safety and quality that industrial buyers expect.
From a 1-ton crane for a small workshop to a 15-ton unit for a mid-size manufacturing plant, we have delivered single girder cranes across industries throughout India and to international markets.
What is a Single Girder EOT Crane?
It is a type of overhead traveling crane that has a single horizontal bridge girder or beam mounted on end trucks on both sides. An electric wire rope hoist runs along the bottom flange of this single beam to lift and move materials horizontally. It lifts and moves loads in three directions — up and down, left and right, and forward and backward — covering every point within the bay.
Because it uses one girder instead of two, a single girder crane is lighter, more compact, and requires less structural headroom than a double girder EOT crane. This makes it a very practical solution for facilities with limited bay height, moderate load requirements and where installation cost is a consideration. It is also named single beam overhead crane or single girder bridge crane in the industry.
Want to learn how single girder cranes work and what makes them different from other crane types?
How Does a Single Girder EOT Crane Work?
An electric hoist is used to lift and lower the load vertically. This is the primary lifting function and is accomplished with a hoist motor and fail-safe brake.
Trolley Cross Travel - Lateral Movement
The hoist trolley moves left and right along the bottom flange of the bridge girder, over the full width of the bay, and gives the load accuracy in the horizontal plane.
Bridge Long Travel — Longitudinal Motion
The entire crane bridge travels forward and backward along the runway rails, covering the full length of the bay.
Single Girder EOT Crane Applications
- Engineering workshops and fabrication units
- Automobile and auto component plants
- Machine tool manufacturing facilities
- Pharmaceutical and chemical plants
- Food processing and dairy industries
- Textile mills and spinning units
- Warehousing and logistics facilities
- Construction equipment yards
- Water treatment plants
- Cement and ceramic industries
- Paper and packaging units
- Small and mid-size foundries
Why Choose Us as Your Single Girder Crane Manufacturer?
Field experience
We have years of experience in manufacturing overhead cranes for industrial applications. That experience shows in every crane we design.
Customized Solutions
We do not sell stock cranes. Every single girder crane is designed around your bay span, capacity, duty class, hook height, and site conditions.
IS Standard Compliant
Every crane is built to IS:807 and IS:3177 — the Indian standards governing overhead crane design, manufacture, and testing. No shortcuts.
Full Quality Control
Gearboxes, structural fabrication, and critical components are made in-house at our Ahmedabad facility. This gives us direct control over quality, delivery, and spare parts.
Pan-India Supply and Export
We supply single girder EOT cranes to industries across India and export to international markets, with complete installation and commissioning support.
Reliable After-Sales Support
Annual maintenance contracts, breakdown support, and spare parts from stock — so your crane keeps running and your production does not stop.
Frequently Asked Questions
What is a Single Girder EOT Crane?
A Single Girder Crane is an electric overhead traveling crane with one main bridge beam. An electric hoist runs along the bottom of this beam, and the crane travels along overhead runway rails — keeping the floor completely free while handling loads up to 15 tons.
What is the maximum capacity of a single girder crane?
Single girder cranes are typically manufactured for capacities up to 15 tons. For loads above 15 tons or high-frequency applications, a double girder crane is the recommended option.
What is the difference between top running and under running single girder cranes?
In a top running crane, the bridge travels on rails mounted on top of the runway girder — the standard design for most applications. In an under-running crane, the bridge hangs below the runway beam and travels on its bottom flange, which is used where maximum hook height is needed in a building with limited headroom.
Is a single girder crane cheaper than a double girder crane?
Yes – single girder cranes are cheaper to manufacture, install and maintain as compared to double girder cranes due to use of one girder instead of two and less structural support from the building. For applications within their capacity range, they are the more cost-effective solution.
Can a single girder EOT crane be customised?
Yes. Every crane from Ganesh Engineering is custom engineered – span, capacity, duty class, hook height and operational requirements are all taken into account at the design stage.
Do you provide installation and maintenance support?
Yes. We offer full installation and commissioning support, annual maintenance contracts and stock spare parts for all cranes we deliver.
What industries use single girder cranes?
Engineering workshops, pharmaceutical plants, food processing facilities, textile mills, warehouses, automobile plants, cement industries and any plant which requires moderate overhead lifting on a regular basis.
What is the price of a Single Girder EOT Crane in India?
The price depends on capacity, span, height, control system, and duty class. Contact us for a custom quotation.
