Wire Rope Winch
Span
300mtr.
Capacity
1ton to 200ton
Duty Class
Class-I to Class-IV (M1-M8)
Operation
Fixed mounting Push button or moveable push button or radio remote operated

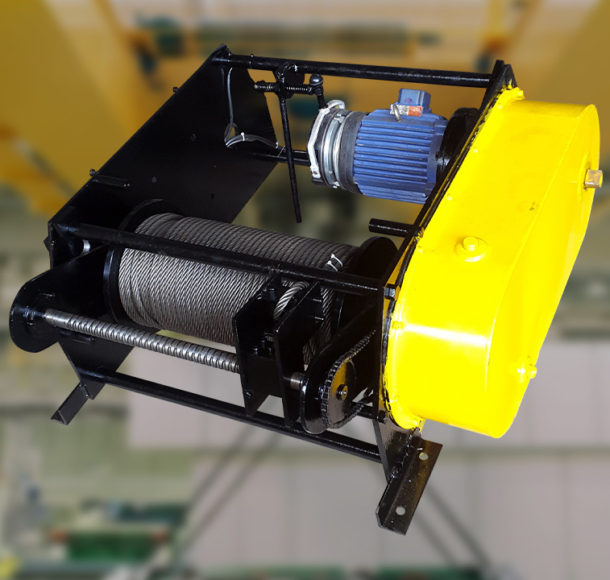

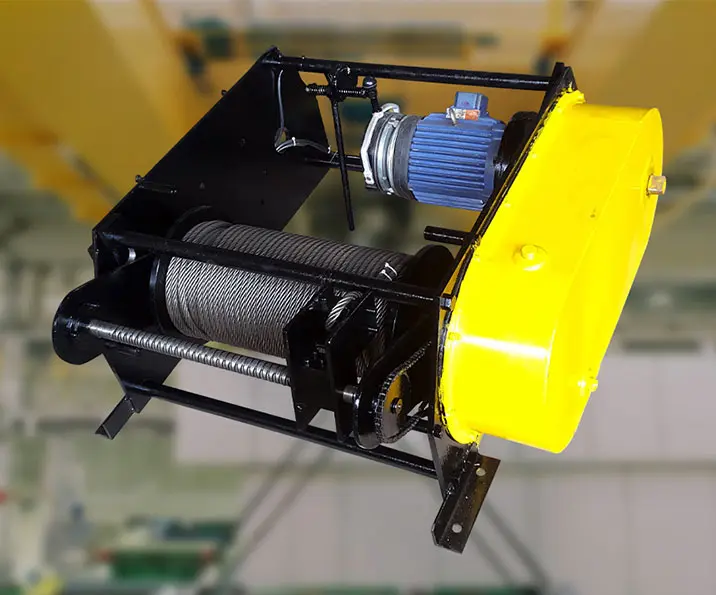

What is Wire rope winch
Lightweight, Compact wire rope winches are inherently useful and can be the perfect solution to any number of pulling and lifting tasks. Electric operated Frame Mounted wire rope winches are commonly used for recovery purposes, Heavy Machinery Erection work, they also useful for hauling, Pulling or hoisting Heavy Load.
Wire rope winches are well suited for lifting and pulling tasks. These are lightweight and reliable. Working in the field, for many years we have been the foremost organization in the industry. We work in a very professional way and by the requirements of the clients. We believe in delivering the finest range of wire rope winch. We are the best wire rope winch manufacturers in India. Wire rope winch is well suited for material lifting and builders lift.
We have a variety of wire rope winches with us. We come and work with a team of professionals that work in a perfect way that helps us deliver the best to our clients. We have a look and schedule of a test at every stage for every product that is made with us so that there is no defect in the product later. We also perform a final test before delivering it to the client to make sure that the machine is working flawlessly. We work at the best reasonable rates in the market. We are also renowned wire rope winch Suppliers .
Know More
Other Details of the Wire Rope Winch
- Manufacturing Range
- Specifications
- Standard Features
- Optional Features
- Safety
- Packing & Forwarding
- Pre-Sales Service
- After-Sales Service
- Manufacturing Range
- 1t. to 200t. Cap., up to 1000 meter Wire Rope (for Higher Capacity please consult us)
- 1t. Winch
- 2t. Cap. Winch
- 3t. Cap. Winche
- 5t. Cap. Winch
- 7.5t. Cap. Winch
- 10t. Cap. Winch
- 15t. Cap. Winch
- 20t. Cap. Winch
- 30t. Cap. Winch
- 40t. Cap. Winch
- 50t. Cap. Winch
- 75t. Cap. Winch
- 100t. Cap. Winche
- 150t. Cap. Winch
- 200t. Cap. Winch
- Specifications
- Standard Features
- Modular Design
- CNC Plasma Cut Plates
- Flange Mounted Motors up to 10 HP
- Higher efficiency to save power
- All motions are protected with Fail safe type brakes (which are applied when power supply is off and release when power supply is on.)
- All motions are protected with limit switches
- Dustproof panel box with reputed make switch gear or as per customer’s approval
- 110 V Control voltage selected for protection of Crane operator against any electrical shock
- With electrical Interlocking to prevent simultaneous operation of opposite motion
- Unbreakable, Handy, light weight PVC Pushbutton
- Own Make Gearbox so which are easy to maintenance and we can provide any parts at any time from our stock
- Optional Features
- Radio Remote Control
- Dual speed for all motion
- VFD in all motion
- Siren While Traveling a Hoist
- Load Cell with Display to weigh a Load or protection against overload
- Special Dimension Hook
- Other Reputed Brand Gearbox
- Protective Paints / Coating
- Safety
- Over Lowering or over hoisting prevention limit switch
- Hook Safety Latch
- Overload Relays
- Travelling limit switch
- Brakes in Hoisting as well as c.t
- On/ off switch in push button /Emergency stop
- MCB /fuse
- All 4 core cables with Earth cable
- Packing & Forwarding
- Pre-Sales Service
- One to one service guarantees you the best purchasing experience.
- Strong production capacity and professional workmen guarantee you the short delivery.
- Strict delivery inspection guarantees you the high quality products.
- The short delivery time.
- After-Sales Service
- One year warranty for Cranes
- Providing free quick-wear part
- Low charge for continue maintenance when warranty is expired
- Exclusive engineer support at any time.
- Highly professional training to end-users
| Descriptions | Specifications |
| Capacity | 1t., 2t., 3t.,5t.,7.5t., 10t.,15t.,20t.,30t.,40t.,50t.,75t.,100t.,150t.,200t. |
| Area | Non Hazardous/Hazardous as per customer requirement |
| Test Load | 125% of SWL |
| Rope Length | 10 meter to 1000 meter as per customer requirements |
| Type | Portable, Base Mounted, |
| Locations | Indoor/Out door |
| Speed | 0.1 meter per minute to 25 meter per minute |
| Micro Speed | Provided after 10 hp, below 10 hp on request |
| Ele. Motors | All motors are off S-4 duty, Squirrel cage ,40% CDF,150 S/hr., IP -55 with Class F insulation or as per required class and duty |
| Brakes | Electro Hydraulic shoe type/ Electromagnetic Disc / Electromagnetic Shoe type brake shall be provided in Hoisting & C.T. These brakes are automatically released when the motor circuit is on and is applied the motor circuit is off |
| Wire Rope & No. of fall | Selected as per crane capacity and IS Code he make of wire rope will be used Usha-martin |
Electric & Small parts are packed by high quality wooden crate to reduce distortion in conveying; Main beams, end carriages and electric hoist are packed by Wrapping of plastic roll It can reduce abrasion when transport.

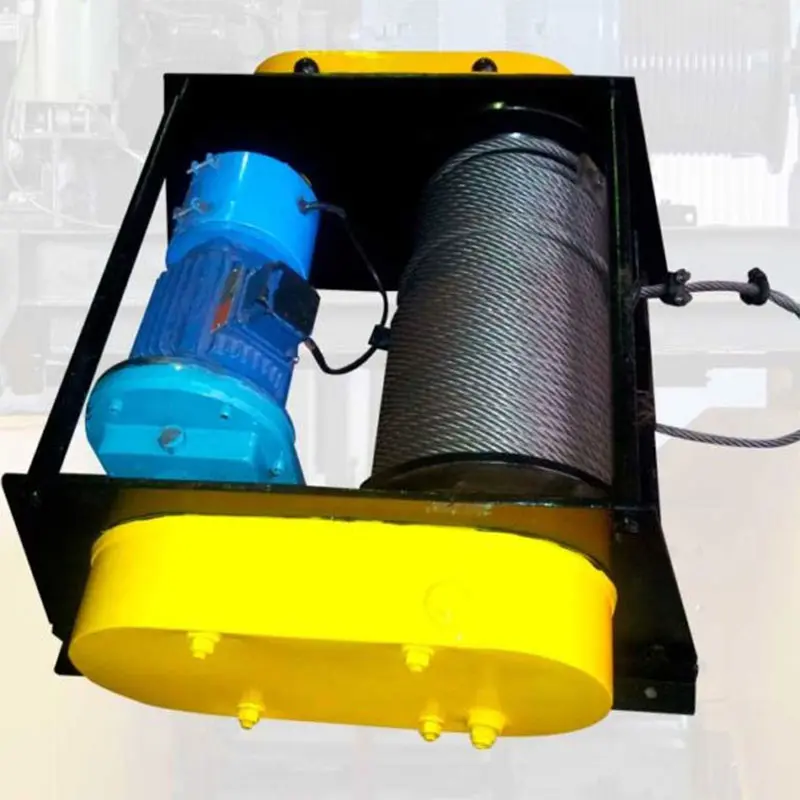

Various Types Of Wire Rope Winch
Frequently Asked Questions
What is the difference between a wire rope winch and a wire rope hoist?
A wire rope hoist is designed for vertical lifting — raising and lowering loads on a crane. A wire rope winch is built for pulling and hauling — horizontal or inclined movement of heavy loads. Winches also come in much higher capacities, up to 200 tons, and can handle longer rope lengths up to 1000 metres.
What safety features are standard on Ganesh Engineering wire rope winches?
Fail-safe brakes applied on power off and released on power on, limit switches on all motions, overload relays, dustproof panel box, 110V control voltage for operator safety, and electrical interlocking to prevent simultaneous opposite motion commands are all standard features on every winch supplied.
How often does the wire rope on a winch need to be inspected or replaced?
The wire rope should be visually inspected before each use for broken strands, kinking, corrosion, or flattening. A formal inspection by a qualified person is recommended monthly for winches in regular use. Replace the rope immediately if you find broken wires, visible corrosion, or significant distortion — never run a damaged rope under load.
Is a wire rope winch heavy and difficult to install?
Not really — one of the main selling points is that these winches are lightweight and compact compared to their pulling capacity. Most versions are frame mounted and don’t need heavy structural work to set up. Wall mounted and floor mounted options are also available, so installation can be adjusted based on where the winch actually needs to sit at your site.
Can a wire rope winch be operated by hand, or does it need electricity?
Either way works, depending on what you need. Electric winches are more common for regular industrial use since they handle heavier, more frequent pulling with a lot less physical effort involved. Hand operated ones are still around too, and they’re a good fit for lighter, occasional jobs where running a motor just isn’t necessary.
What kind of loads can a wire rope winch handle?
This varies quite a bit depending on the model, but Ganesh Engineering’s range covers everything from smaller capacities up to very heavy-duty winches, with wire rope lengths going up to 1000 metres for higher capacity units. If your requirement is on the heavier end, it’s best to share the exact load and pulling distance with the supplier so the right winch can be recommended.
Does a wire rope winch need a lot of maintenance?
Not really, no. These are built to stay fairly low maintenance, and keeping an eye on the wire rope, drum, and brakes usually covers most of what’s needed. Since the design is simpler than a full crane system, servicing doesn’t eat up much time, even when the winch is running daily under heavy industrial use.
