Gantry Crane

Span

5mtrs. to 50mtrs.

Capacity

1 Ton-100 Ton

Duty Class

Class-I to Class-IV (M1-M8)

Operation

Floor operated through pendent pushbutton station (Optional remote or cabin Operated)

About Our Product

Best Product In Market

These cranes are available in single girder type or double girder type as well as EOT Cranes but these cranes are run on floor mounted rail by its two legs which is fabricated from steel section or plates, Our Robust gantry crane which save your expensive structure cost, easily expandable long travel whenever you need you may expand longitudinal travel with low cost compare to EOT,no need of heavy structure and foundations, easily disassembly and transfer ay anywhere, useful for temporary light or heavy work. 3t. to 100t. Cap., up to 55-meter span Double Girder type and required Height of lift (Higher Capacity and span also available on request).

Know More

Other Details Of The Gantry Crane

Standard Features

Standard Features

Simple and optimum Design ensuring minimum dead weight,Wheel Load Headroom and easy to maintenance.
Easy to installation.
Reliable structure.
Higher efficiency to save power.
All motions are protected with Fail safe type brakes (which are applied when power supply is off and release when power supply is on.)
All motions are protected with limit switches.
Rubber buffers are provided to extra protection against collision in case of limit switch failure.
Dustproof panel box with reputed make switch gear or as per customer's approval.
110 V Control voltage selected for protection of Crane operator against any electrical shock.
With electrical Interlocking to prevent simultaneous operation of opposite motion.
Using "C' Rail / | Section type C.T. & Push button Festoon system it's give long life and trouble free operation.

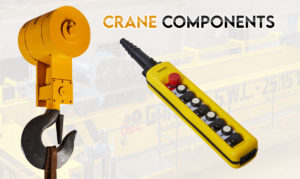

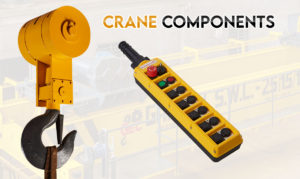

Unbreakable, Handy, light weight PVC Push button.
Coupling less L.T. & C.T. & Hoist Motion up to 10 Hp,(Less mechanism less maintenance)
VFD in Long Travel Motion, Smooth Start & Stop (Maximize the life of Mechanism)
Own Make Gearbox so which are easy to maintenance and we can provide any parts at any time from our stock.
Platform with hand railing for easy, simple & safe maintenance of the crane extended partially or totally along the girder width.

Various Types Of Gantry Crane

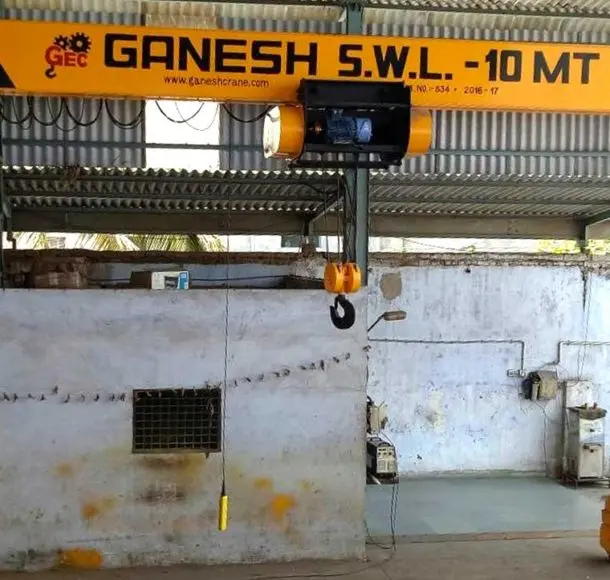

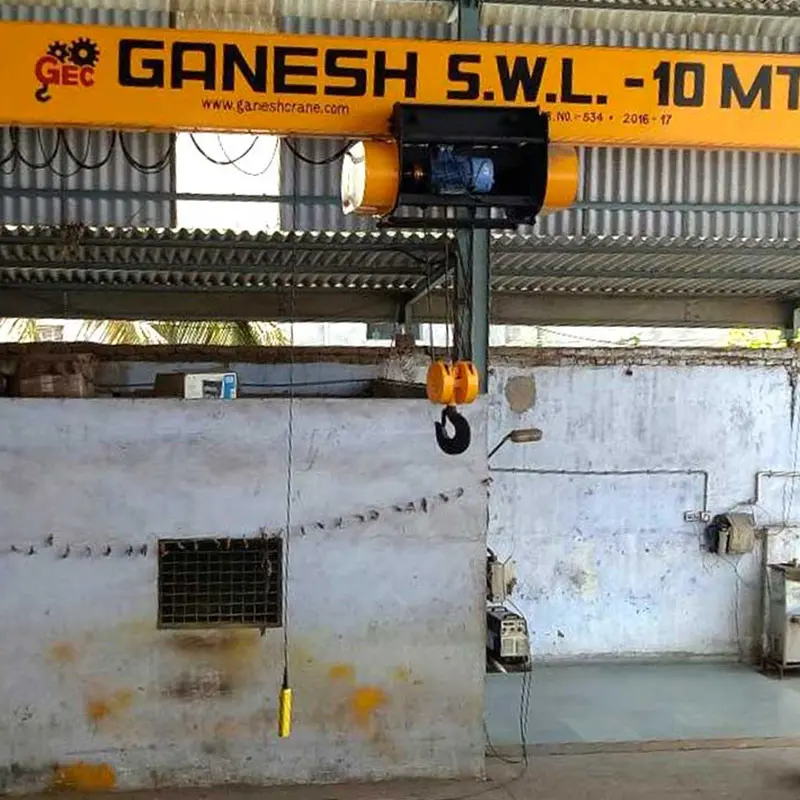

Single Girder Gantry Crane

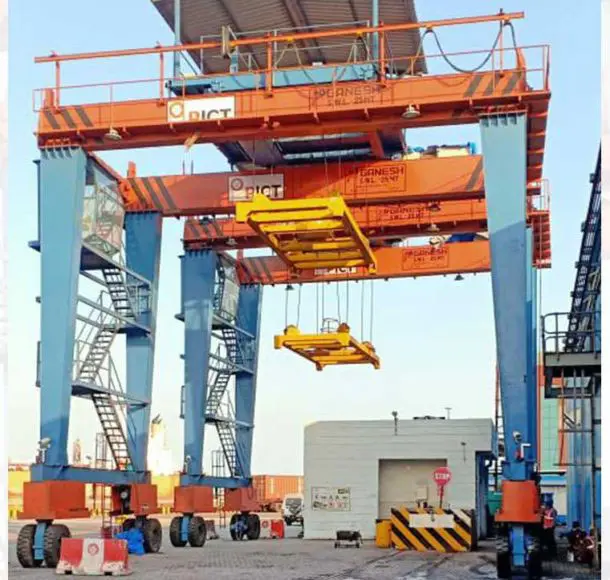

Rubber Tyre Gantry Crane

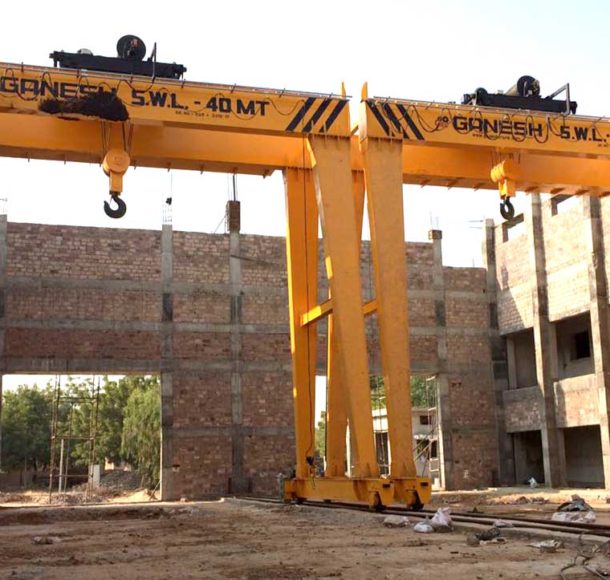

Double Girder Gantry Crane

About Our Product

Details About Gantry Crane

It is also a type of overhead crane that comes with a single and double girder configuration. The gantry crane is always supported by legs and move on the wheels. It is mainly applied or found to be applied on the rail or track system. These types of cranes are mainly applied and used for outdoor applications. Most of the outdoor applications or heavy industrial works are carried out with the help of gantry cranes. These types of Cranes are generally used outdoor to handle heavy loads. In the engineering Industries, Ship yards, Ports, Granite, Steel Yards, Cement Pipe Industries, Open Yard, Storages places, Container Depot etc.

These cranes are available in single girder type or double girder type, as well as EOT Cranes but these cranes, are run on the floor-mounted rail by its two legs which are fabricated from steel section or plates, these cranes are specially designed for outdoor working.

These types of Cranes are generally used outdoor to handle heavy loads. In the engineering Industries, Ship yards, Ports, Granite, Steel Yards, Cement Pipe Industries, Open Yard, Storages places, Container Depot, etc. These cranes are available in single girder type or double girder type as well as EOT Cranes but these cranes are run on the floor-mounted rail by its two legs which are fabricated from steel section or plates, these cranes are specially designed for outdoor working.We design and manufacture Double Girder EOT Crane as per Indian Standard IS; 807, & IS 3177.

Our Other Products

EOT Crane

Goliath Crane

JIB Crane

Wire Rope Winch

Wire Rope Hoist

Frequently Asked Questions

Do I need a factory shed or building structure to install a gantry crane?

Not really. A gantry crane stands on its own legs and moves on rails fixed to the ground, so there’s nothing to attach to a roof or column. That’s what makes it work so well for open yards or outdoor storage areas where putting up a building just isn’t practical.

Can a gantry crane handle heavy loads like an EOT crane?

Yes, capacity isn’t really a limitation here. Gantry cranes are available from smaller 1-ton models right up to 100 tons, so they can handle the same kind of heavy lifting as an overhead crane. The choice usually comes down to site conditions rather than how much weight needs to be lifted.

Can one gantry crane cover multiple bays or sections of a yard?

Yes, since it moves along ground-level rails rather than being fixed to one section of a building, a single gantry crane can cover a fairly long stretch of yard or storage area, as long as the rail track is laid out for it. This is one reason yards prefer them over fixed overhead systems.

How much does a gantry crane cost?

It depends a lot on what you’re lifting and where. Capacity can range anywhere from 1 ton to 100 tons, and span can go from 5 metres up to 50 metres, so pricing shifts a good bit based on that. Single girder or double girder, floor operation or remote — all of it adds up differently. The only way to get a real number is to share your load and span requirement with the supplier.

How often does a gantry crane need servicing?

There’s no single answer here — it really depends on usage and conditions. A crane running daily in a dusty outdoor yard will need its wheels, rail track and panel box checked more often than one that only runs occasionally indoors. Regular eyes on it is really what keeps problems from building up.

What should I check before buying a gantry crane?

Span and capacity are the starting point, since that decides whether single girder or double girder suits your load. Beyond that, check the operation type — pendant, remote or cabin — and confirm whether the site is more suited to a gantry crane instead of an EOT, especially if you don’t want to invest in a heavy structure. IS code compliance is worth confirming too.

Is a gantry crane safe to operate?

Yes — they come with fail-safe brakes that engage automatically if power cuts off, limit switches on all motions, and rubber buffers for extra protection against collision. Electrical interlocking also prevents two motions from running at the same time by mistake. With a trained operator, day-to-day use is quite safe.

What should I tell the supplier before asking for a quote?

The load you need to lift, the span you need covered, and whether the site is indoor or outdoor make the biggest difference to pricing. Mentioning whether you need it fixed in place or movable also helps the supplier suggest the right type instead of a generic quote.
