Single Girder Electric Goliath Crane

Home/Single Girder Electric Goliath Crane
Span

5mtr. to 50mtr.

Capacity

1ton to 10ton

Duty Class

Class-I to Class-IV (M1-M8)

Operation

Floor operated through pendent pushbutton station (Optional remote or cabin Operated)

About Our Product

Importance of single girder electric goliath crane in the Industrial world

We all must have noticed that within a few years time there have been immense changes in the industrial world. Take for example, the birth or the introduction of the cranes and the electric cranes have been much useful and helpful. It has helped a lot of industrial workers to carry or move the goods comfortably from one area to another in a hassle-free manner. We can easily shift the goods with the assistance of the cranes. They are helpful device in the whole industrial field. It is a great invention.

Contact Us Now
Know More

Other Details of the Single Girder Electric Goliath Crane

  • Manufacturing Range
  • Specifications
  • Standard Features
  • Optional Features
  • Safety
  • Packing & Forwarding
  • Pre-Sales Service
  • After-Sales Service
  • Manufacturing Range
    1. 1t. Cap. Single Girder Goliath Crane
    2. 2t. Cap. Single Girder Goliath Crane
    3. 3t. Cap. Single Girder Goliath Crane
    4. 5t. Cap. Single Girder Goliath Crane
    5. 7.5t. Cap. Single Girder Goliath Crane
    6. 10t. Cap. Single Girder Goliath Crane
  • Specifications
    • Descriptions Specifications
    Capacity 1t.,2t.,3t.,5t.,7.5t.,10t.
    Area Non-Hazardous/Hazardous as per customer requirement
    Test Load 125% of SWL
    Height of Lift 3 meters to 50 meters or as per customer requirements
    IS Code IS807, IS3177
    Type Single Girder
    Locations Indoor/Out door
    End Carriages The End Carriages are welded construction type and fabricated from plates or Std. section type constructions.
    Bridge Girders The girders are of plate fabricated box type construction design to sustain all stresses arising due to vertical & lateral forces with impact to which they are subjected. The maximum deflection of the main girder is limited to 1/750 the span of live loads including the weight of the trolley or hoist.
    Platform M.S. Checkered plate/anti-skid plate’s full-length platform shall be provided on one side of the bridge girder in double girder crane
    End Stopper Steel end stoppers are provided on either side of the bring to limit the motion of the trolley. All the buffers will employ springs for shack absorption.
    Steel Steel confirming to IS-2062 or equivalent is used in the manufacturing of the main load bearing.  (Mainly Essar or Sail make)
    Wheel Base As per span and IS code
    L.T. Drive System Twin drive type.
    Main-Hoisting 1 meter per minute to 20 meters per minute or as per customer’s requirements (micro speed will be provided on demand)
    L.T. 1 meter per minute to 120 meters per minute or as per customer’s requirements (micro speed will be provided on demand)
    C.T. 1 meter per minute to 120 meters per minute or as per customer’s requirements (micro speed will be provided on demand)
    Ele. Motors All motors are off S-4 duty, Squirrel cage ,40% CDF,150 S/hr., IP -55 with Class F insulation or as per required class and duty
    Brakes Electro-Hydraulic shoe type/ Electromagnetic Disc /AC & DC  Electromagnetic Shoe type brake shall be provided in Hoisting L.T. & C.T. These brakes are automatically released when the motor circuit is on and is applied the motor circuit is off
    Wire Rope & No. of aal Selected as per crane capacity and IS Code he makes of wire rope will be used Usha-martin
  • Standard Features
    1. Simple and optimum Design ensuring minimum dead weight, Wheel Load Headroom and easy to maintenance
    2. Easy to installation
    3. Reliable structure
    4. Higher efficiency to save power
    5. All motions are protected with Fail safe type brakes (which are applied when power supply is off and release when power supply is on.)
    6. All motions are protected with limit switches
    7. Rubber buffers are provided to extra protection against collision in case of limit switch failure
    8. Dustproof panel box with reputed make switch gear or as per customer’s approval
    9. 110 V Control voltage selected for protection of Crane operator against any electrical shock
    10. With electrical Interlocking to prevent simultaneous operation of opposite motion
    11. Using "C' Rail / I Section type C.T.  & Push button Festoon system it’s give long life and trouble free operation
    12. Unbreakable, Handy, light weight PVC Pushbutton
    13. Coupling less L.T. & C.T. Motion up to 7.5 Hp, (Less mechanism less maintenance)
    14. VFD in Long Travel Motion, Smooth Start & Stop (Maximize the life of Mechanism)
    15. Own Make Gearbox so which are easy to maintenance and we can provide any parts at any time from our stock
    16. Platform with hand railing for easy, simple & safe maintenance of the crane extended partially or totally along the girder width
  • Optional Features
    1. Radio Remote Control / Cabin Control
    2. Dual speed for all motion
    3. VFD in all motion
    4. Siren While Traveling a crane
    5. Load Cell with Display to weigh a Load or protection against overload
    6. Special Dimension Hook
    7. Other Reputed Brand Gearbox
    8. Drag Chain in Festoon system
    9. Protective Paints / Coating
  • Safety
    1. Over Lowering or over hoisting prevention limit switch
    2. Hook Safety Latch
    3. Overload Relays
    4. Travelling limit switch
    5. Rubber buffer
    6. Brakes in Hoisting as well as c.t & L.T.
    7. Main Switch
    8. On/ off switch in push button /Emergency stop
    9. MCB /fuse
    10. All 4 core cables with Earth cable
    11. Maintenance platform
    12. Siren in goliath crane
    13. Anti-collision device when more than one crane on same bay
  • Packing & Forwarding

    • Electric & Small parts are packed by high quality wooden crate to reduce distortion in conveying; Main beams, end carriages and electric hoist are packed by Wrapping of plastic roll It can reduce abrasion when transport.

  • Pre-Sales Service
    1. One to one service guarantees you the best purchasing experience.
    2. Strong production capacity and professional workmen guarantee you the short delivery.
    3. Strict delivery inspection guarantees you the high quality products.
    4. The short delivery time.
  • After-Sales Service
    1. One year warranty for Cranes
    2. Providing free quick-wear part
    3. Low charge for continue maintenance when warranty is expired
    4. Exclusive engineer support at any time.
    5. Highly professional training to end-users

How can we move the goods from one place to another?

We are glad to pronounce that we are the best Single Girder Electric Goliath Crane manufacturer in India. We always give special stress on the quality of the machine. This is the reason why we try to use best-quality materials and ingredients in manufacturing the same. We never compromise with the goods under any situation. We mainly provide and give priority on customers view and feedbacks. This has taken us to a new world.

On the other side, we have always maintained a team of highly trained and skilled workers. They have always worked and dedicated their level best to produce good quality cranes.

What is the best thing about the electric cranes?

We are one of the largest Single Girder Electric Goliath Crane suppliers who have gained good fame and reputation by selling quality cranes to the buyers. We have always focused on the ingredients and process of manufacturing the cranes. This is the reason why people and our top-quality clients prefer us.

Even we try to make the operating system of the crane much easier and better for the buyers. On the other hand we have always tried to give stress on the warranty period of the cranes. This is our main intention.

Contact Us Now

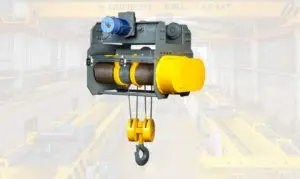

Various Components Single Girder Electric Goliath Crane
