Rubber Tyre Gantry Crane

Home/Rubber Tyre Gantry Crane
Span

5mtr. to 50mtr.

Capacity

1ton to 10ton

Duty Class

Class-I to Class-IV (M1-M8)

Operation

Floor operated through pendent pushbutton station (Optional remote or cabin Operated)

About Our Product

Grab the best things of rubber tyre gantry crane

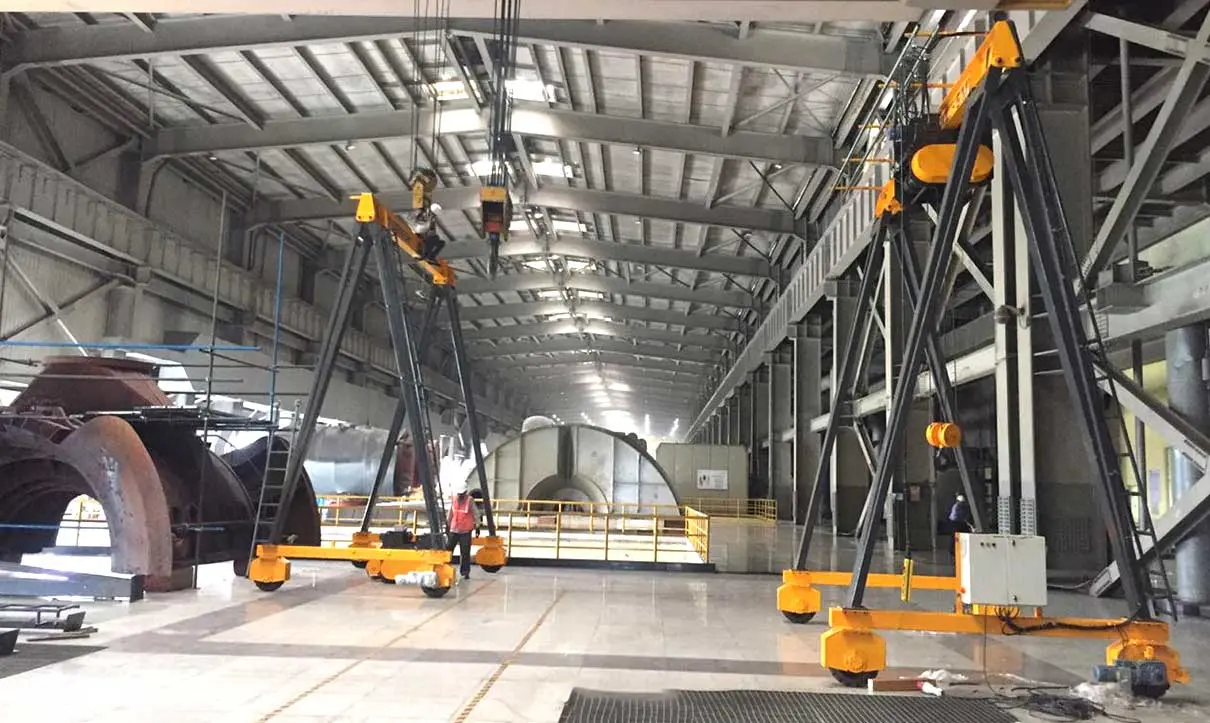

We offer portable to giant Single Girder and Double Girder Rubber Tyre gantry crane which are same as gantry cranes but these cranes have no required any specific track so its reduce the cost of track, also available with steer facility for easy use in any curved path or strait & Curved mixed path.

In most of the industrial works, people require cranes. They can help in the easy lifting of products and goods from one place to another. However, with the help of advanced technology, we can get some new and updated cranes. These cranes can help in the smooth functioning of the work. Many industrial houses have started adopting and hiring these types of machines. They are found to be suitable for industrial works and activities.

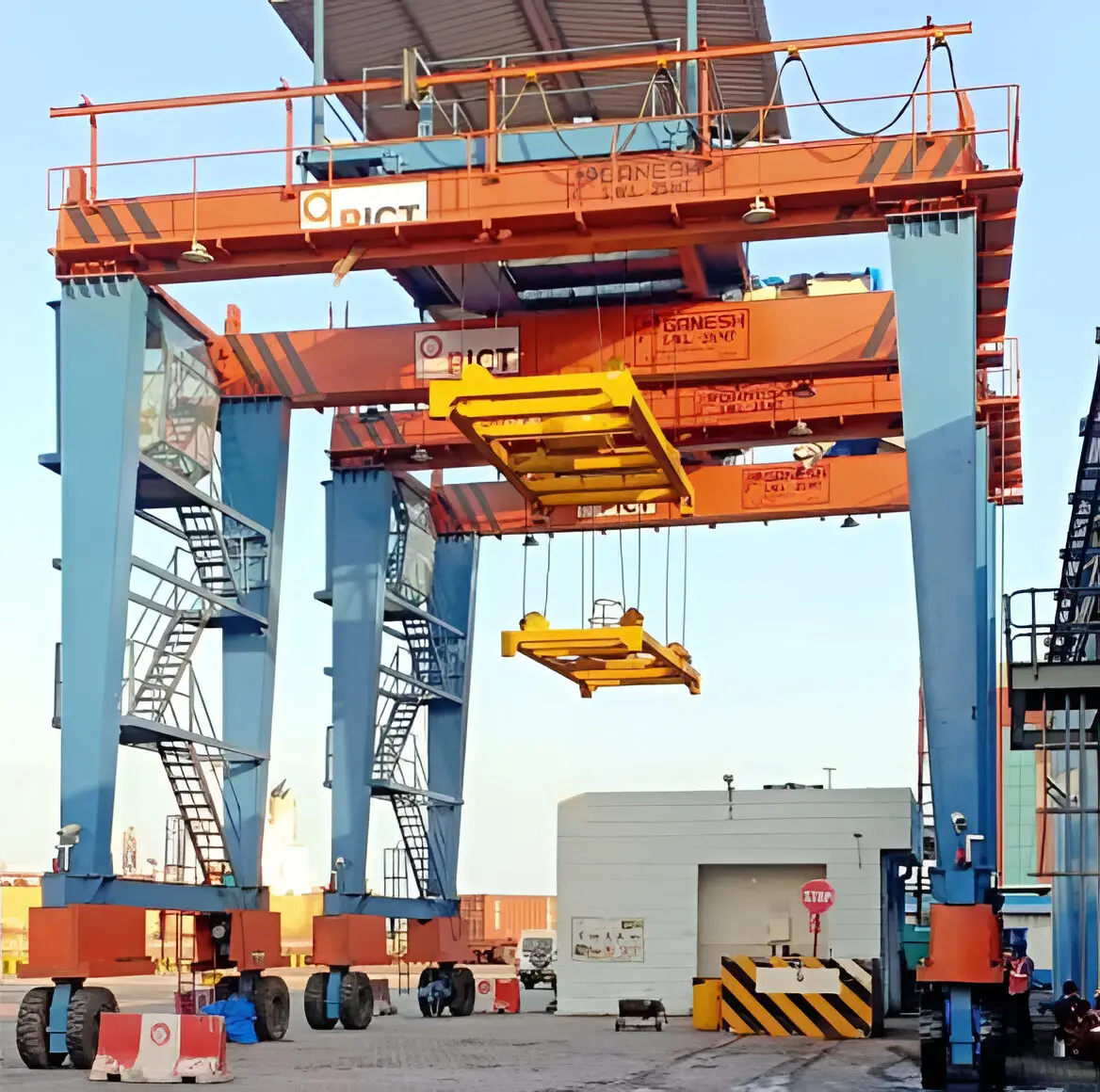

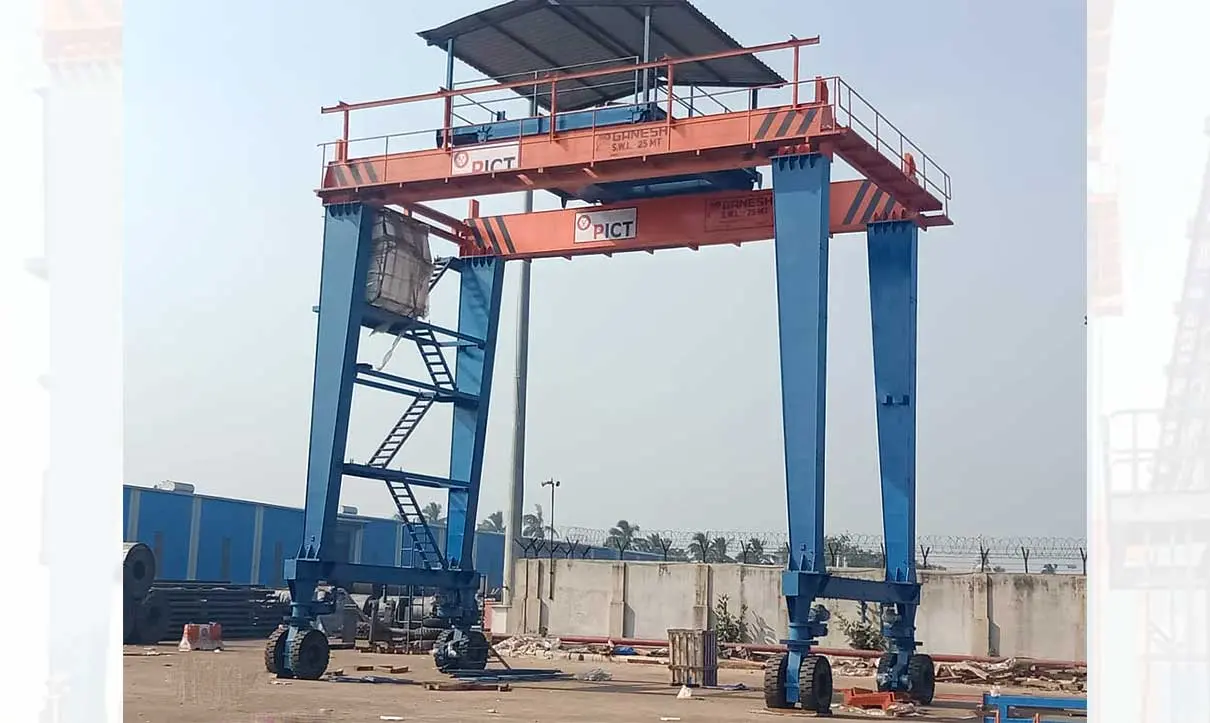

These types of Cranes are generally used in outdoor to handle heavy loads. In the engineering Industries, Ship yards, Ports, Granite, Steel Yards, Cement Pipe Industries, Open Yard, Storages places, Container Depot etc. These cranes are available in Single Girder EOT Crane or Double Girder EOT Crane as well as RUBBER TYRE GANTRY Cranes but these cranes are run on leveled floor with Rubber tyre, these crane are specially designed for out door working.

Contact Us Now
Know More

Other Details of the Rubber Tyre Gantry Crane

  • Manufacturing Range
  • Specifications
  • Standard Features
  • Optional Features
  • Safety
  • Packing & Forwarding
  • Pre-Sales Service
  • After-Sales Service
  • Manufacturing Range
    • 1t. to 100t. Cap., up to 50-meter span and required Height of lift (for Higher Capacity and span please consult us)
    • 1t. Cap. RUBBER TYRE GANTRY Crane
    • 2t. Cap. RUBBER TYRE GANTRY Crane
    • 3t. Cap. RUBBER TYRE GANTRY Crane
    • 5t. Cap. RUBBER TYRE GANTRY Crane
    • 7.5t. Cap.RUBBER TYRE GANTRY Crane
    • 10t. Cap. RUBBER TYRE GANTRY Crane
    • 12.5t. Cap.RUBBER TYRE GANTRY Crane
    • 15t. Cap.RUBBER TYRE GANTRY Crane
    • 20t. Cap. RUBBER TYRE GANTRY Crane
    • 25t. Cap.RUBBER TYRE GANTRY Crane
    • 30t. Cap.RUBBER TYRE GANTRY Crane
    • 40t. Cap.RUBBER TYRE GANTRY Crane
    • 50t. Cap. RUBBER TYRE GANTRY Crane
    • 60t. Cap.RUBBER TYRE GANTRY Crane
    • 75t. Cap. RUBBER TYRE GANTRY Crane
    • 80t. Cap.RUBBER TYRE GANTRY Crane
    • 100t. Cap. RUBBER TYRE GANTRY Crane
  • Specifications
    • Descriptions Specifications
    Capacity 1t.,2t.,3t.,5t.,7.5t.,10t.,12.5t,15t.,20t.,25t.,30t.,40t.,50t.,60t.,75t.,80t.,100t.
    Area Non Hazardous/Hazardous as per customer requirement
    Test Load 125% of SWL
    Span 5 meters to 50 meters or as per customer requirements
    Height of Lift 3 meters to 50 meters or as per customer requirements
    Duty & Class Class-I, Class-II, Class-III, Class-IV,
    IS Code IS807, IS3177
    Type Double Girder
    Locations Indoor/Out door
    End Carriages The End Carriages are welded construction type and fabricated from plates or Std. section type constructions.
    Bridge Girders The girders are of plate fabricated box type construction design to sustain all stresses arising due to vertical & lateral forces with impact to which they are subjected. The maximum deflection of the main girder is limited to 1/750 the span of live loads including the weight of the trolley or hoist.
    Platform M.S. Checkered plate/anti skid plate’s full length platform shall be provided one side of the bridge girder in double girder crane
    End Stopper Steel end stoppers are provided on either side of the bring to limit the motion of the trolley. All the buffers will employ springs for shack absorption.
    Steel Steel confirming to IS-2062 or equivalent is used in the manufacturing of the main load bearing.  (Mainly Essar or Sail make)
    Wheel Base As per span and IS code
    L.T. Drive System Twin drive type.
    Main-Hoisting 1 meter per minute to 20 meter per minute or as per customer’s requirements (micro speed will be provided on demand)
    L.T. 1 meter per minute to 120 meter per minute or as per customer’s requirements (micro speed will be provided on demand)
    C.T. 1 meter per minute to 120 meter per minute or as per customer’s requirements (micro speed will be provided on demand)
    Ele. Motors All motors are off S-4 duty, Squirrel cage ,40% CDF,150 S/hr., IP -55 with Class F insulation or as per required class and duty
    Brakes Electro Hydraulic shoe type/ Electromagnetic Disc /AC & DC  Electromagnetic Shoe type brake shall be provided in Hoisting L.T. & C.T. These brakes are automatically released when the motor circuit is on and is applied the motor circuit is off
    Wire Rope & No. ofaal Selected as per crane capacity and IS Code he make of wire rope will be used Usha-martin

  • Standard Features
    1. Simple and optimum Design ensuring minimum dead weight, Wheel Load Headroom and easy to maintenance
    2. Easy to installation
    3. Reliable structure
    4. Higher efficiency to save power
    5. All motions are protected with Fail safe type brakes (which are applied when power supply is off and release when power supply is on.)
    6. All motions are protected with limit switches
    7. Rubber buffers are provided to extra protection against collision in case of limit switch failure
    8. Dustproof panel box with reputed make switch gear or as per customer’s approval
    9. 110 V Control voltage selected for protection of Crane operator against any electrical shock
    10. With electrical Interlocking to prevent simultaneous operation of opposite motion

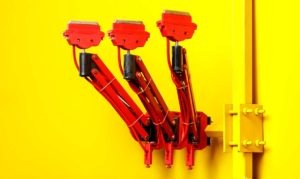

    11. Using "C' Rail / I Section type C.T.  & Push button Festoon system it’s give long life and trouble free operation
    12. Unbreakable, Handy, light weight PVC Pushbutton
    13. Coupling less L.T. & C.T. Motion up to 7.5 Hp, (Less mechanism less maintenance)
    14. VFD in Long Travel Motion, Smooth Start & Stop (Maximize the life of Mechanism)
    15. Own Make Gearbox so which are easy to maintenance and we can provide any parts at any time from our stock
    16. Platform with hand railing for easy, simple & safe maintenance of the crane extended partially or totally along the girder width
  • Optional Features
    1. Radio Remote Control / Cabin Control
    2. Dual speed for all motion
    3. VFD in all motion
    4. Siren While Traveling a crane
    5. Load Cell with Display to weigh a Load or protection against overload
    6. Special Dimension Hook
    7. Other Reputed Brand Gearbox
    8. Drag Chain in Festoon system
    9. Protective Paints / Coating
  • Safety
    1. Over Lowering or over hoisting prevention limit switch
    2. Hook Safety Latch
    3. Overload Relays
    4. Travelling limit switch
    5. Rubber buffer
    6. Brakes in Hoisting as well as c.t & L.T.
    7. Main Switch
    8. On/ off switch in push button /Emergency stop
    9. MCB /fuse
    10. All 4 core cables with Earth cable
    11. Maintenance platform
    12. Siren in goliath crane
    13. Anti-collision device when more than one crane on same bay
  • Packing & Forwarding
    • Electric & Small parts are packed by high quality wooden crate to reduce distortion in conveying; Main beams, end carriages and electric hoist are packed by Wrapping of plastic roll It can reduce abrasion when transport.
  • Pre-Sales Service
    1. One to one service guarantees you the best purchasing experience.
    2. Strong production capacity and professional workmen guarantee you the short delivery.
    3. Strict delivery inspection guarantees you the high quality products.
    4. The short delivery time.
  • After-Sales Service
    1. One year warranty for Cranes
    2. Providing free quick-wear part
    3. Low charge for continue maintenance when warranty is expired
    4. Exclusive engineer support at any time.
    5. Highly professional training to end-users

Best Uses Of Rubber Tyre Gantry Crane

It can be rightly said in this context that these types of crane are always the best option for the industrial workers. We have now turned out to be the best rubber tyre gantry manufacturer’s crane in India. We mainly concentrate on the quality of the products and thus try to give the best ones. We also believe that customer satisfaction is the main thing. These types of cranes are available with spans between five and nine containers.

Other Things About Rubber Tyre Gantry Crane

On the other part, we are now one of the leading rubber tyre gantry crane Suppliers . It is found that these types of gantry cranes usually consume less power and fuel. The optimum designs of the cranes are one of the most important features.It is also known from various sources that the demand of this type of gantry cranes is gradually increasing in the present time. It can reduce the work to a large extent. The low maintenance of the cranes is another special quality of the crane.

Contact Us Now

Various Components Rubber Tyre Gantry Crane
