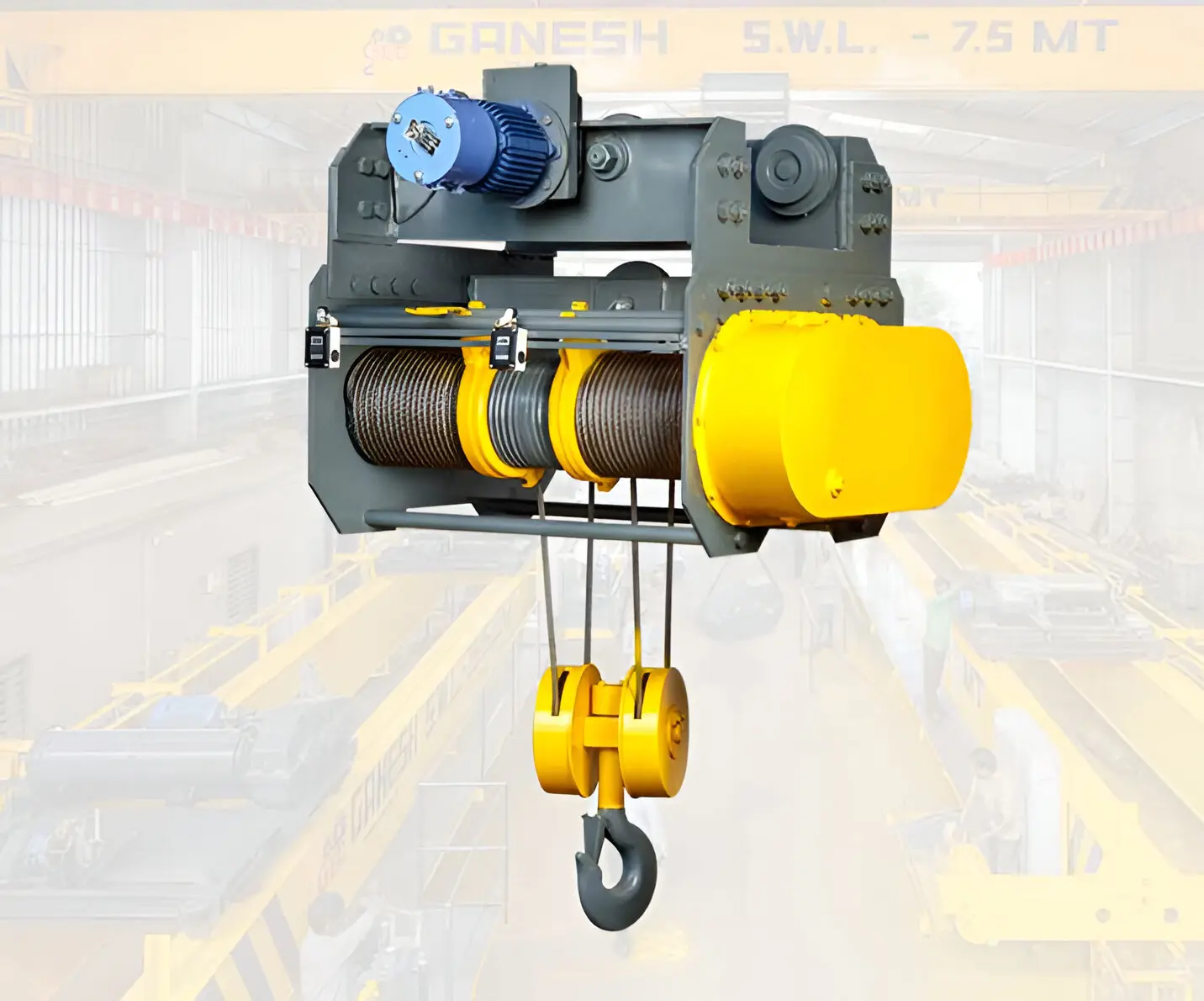

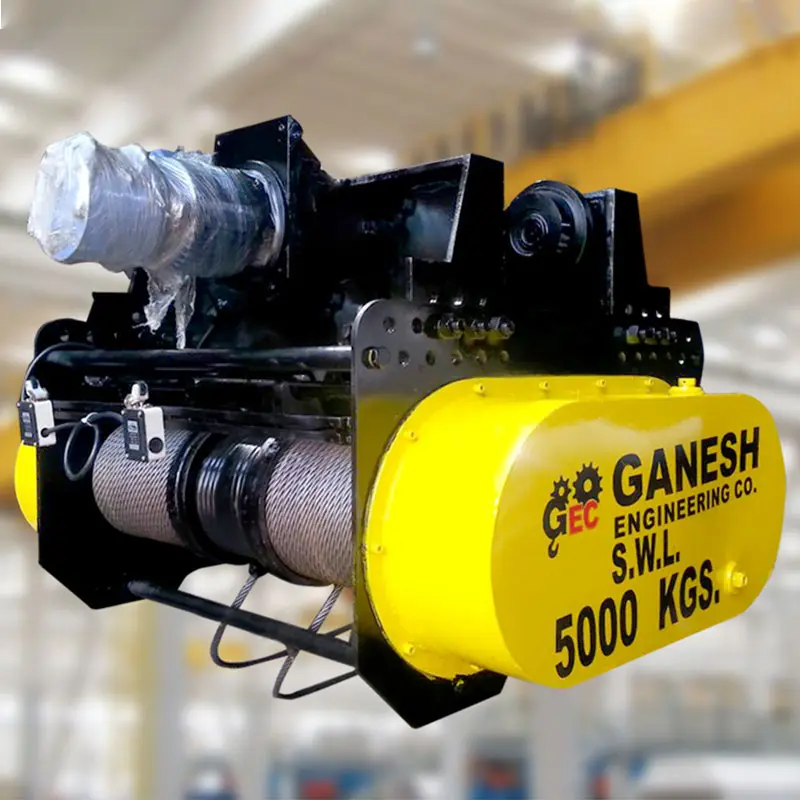

Monorail Hoist
Short Description of product
- CategoryWire Rope Hoist
- Capacity1ton to 10ton
- Span3mtrs. to 50mtrs.
- Duty ClassClass-I to Class-IV
- Power Source Electric
- OperationFloor operated through pendent pushbutton station (Optional remote or cabin Operated)
- 1t. to 10t. Cap., up to 50-meter Height of lift (for Higher Capacity and lift please consult us)
- 1t. Cap. Wire Rope Hoist
- 2t. Cap. Wire Rope Hoist
- 3t. Cap. Wire Rope Hoist
- 5t. Cap. Wire Rope Hoist
- 7.5t. Cap. Wire Rope Hoist
- 10t. Cap. Wire Rope Hoist
|
Descriptions |
Specifications |
|
Capacity |
1t., 2t., 3t., 5t., 7.5t.,10t. |
|
Area |
Non Hazardous/Hazardous as per customer requirement |
|
Test Load |
125% of SWL |
|
Height of Lift |
3 meters to 50 meters or as per customer requirements |
|
Duty & Class |
Class-I, Class-II, Class-III, Class-IV, |
|
IS Code |
IS3177, IS3937 |
|
Type |
Electric |
|
Locations |
Indoor/Out door |
|
Main-Hoisting |
3.5 meter per minute (micro speed will be provided on demand) |
|
C.T. |
15 meters per minute (micro speed will be provided on demand) |
|
Ele. Motors |
All motors are off S-4 duty, Squirrel cage ,40% CDF,150 S/hr., IP -55 with Class F insulation or as per required class and duty |
|
Brakes |
Electro Hydraulic shoe type/ Electromagnetic Disc / Electromagnetic Shoe type brake shall be provided in Hoisting L.T. & C.T. These brakes are automatically released when the motor circuit is on and is applied the motor circuit is off |
|
Wire Rope & No. of fall |
Selected as per crane capacity and IS Code he make of wire rope will be used Usha-martin |
- Modular Design
- CNC Plasma Cut Plates
- Flange Mounted Motors in hoist and CT
- Higher efficiency to save power
- All motions are protected with Fail safe type brakes (which are applied when power supply is off and release when power supply is on.)
- All motions are protected with limit switches
- Dustproof panel box with reputed make switch gear or as per customer’s approval
- 110 V Control voltage selected for protection of Crane operator against any electrical shock
- With electrical Interlocking to prevent simultaneous operation of opposite motion
- Unbreakable, Handy, light weight PVC Pushbutton
- Own Make Gearbox so which are easy to maintenance and we can provide any parts at any time from our stock
- Over Lowering or over hoisting prevention limit switch
- Hook Safety Latch
- Overload Relays
- Travelling limit switch
- Brakes in Hoisting as well as c.t
- On/ off switch in push button /Emergency stop
- MCB /fuse
- All 4 core cables with Earth cable
- Over Lowering or over hoisting prevention limit switch
- Hook Safety Latch
- Overload Relays
- Travelling limit switch
- Brakes in Hoisting as well as c.t
- On/ off switch in push button /Emergency stop
- MCB /fuse
- All 4 core cables with Earth cable
Electric & Small parts are packed by high quality wooden crate to reduce distortion in conveying; Main beams, end carriages and electric hoist are packed by Wrapping of plastic roll It can reduce abrasion when transport.
- One to one service guarantees you the best purchasing experience.
- Strong production capacity and professional workmen guarantee you the short delivery.
- Strict delivery inspection guarantees you the high quality products.
- The short delivery time.
- One year warranty for Cranes
- Providing free quick-wear part
- Low charge for continue maintenance when warranty is expired
- Exclusive engineer support at any time.
- Highly professional training to end-users
