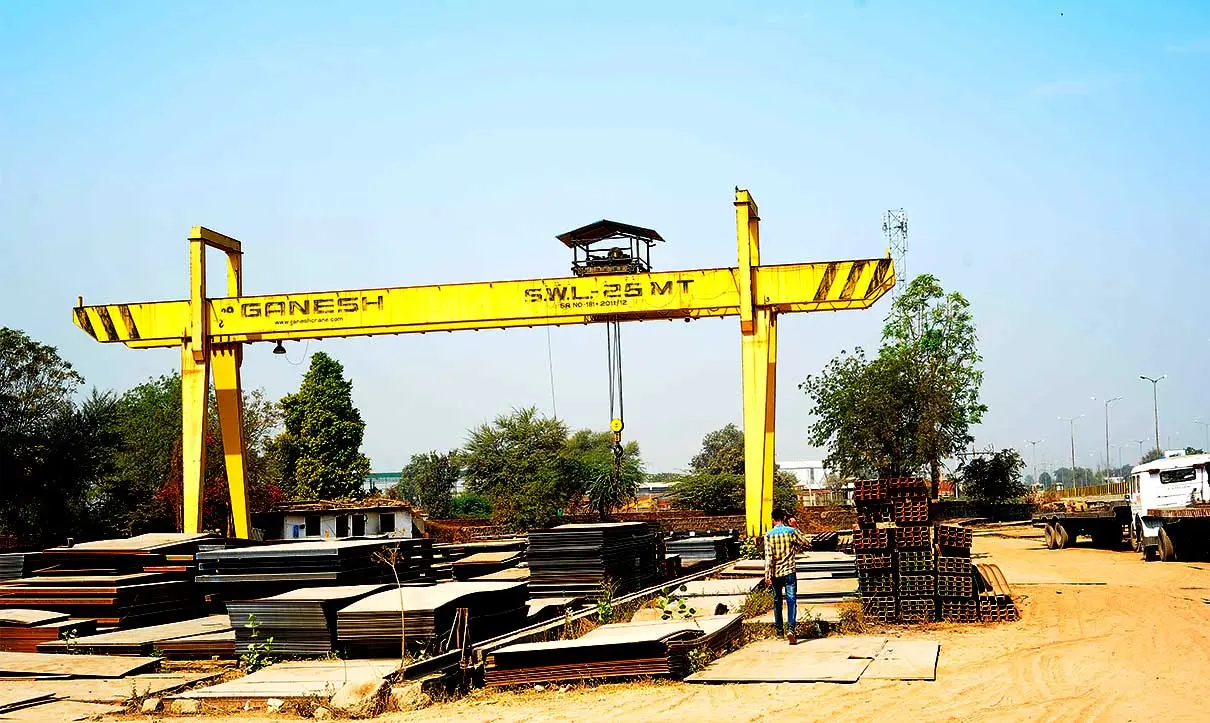

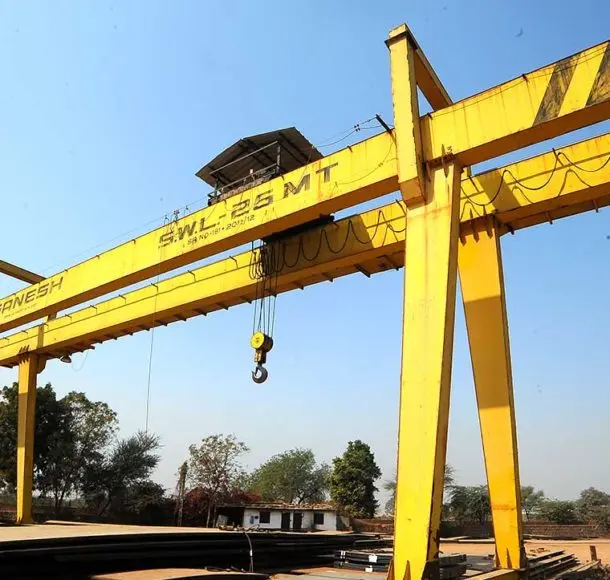

Double Beam Floor Running Goliath Crane

Home/Double Beam Floor Running Goliath Crane
Span

5mtr. to 50mtr.

Capacity

1ton to 100ton

Duty Class

Class-I to Class-IV (M1-M8)

Operation

Floor operated through pendent pushbutton station (Optional remote or cabin Operated)

About Our Product

Make your industrial work easier with Double Beam Floor Running Goliath Crane

We will feel nice when we will come to know that there are thousands of tools that have made a lot of industrial work smoother and comfortable. To be very specific we should try to focus on the quality of the crane. This is one of the main things. The double beam running crane can make the work much simpler and smoother for the users. The more we will handle it the more we will like to handle it conveniently. So, this is the best thing about these types of cranes.

Contact Us Now
Know More

Other Details of the Double Beam Floor Running Goliath Crane

  • Manufacturing Range
  • Specifications
  • Standard Features
  • Optional Features
  • Safety
  • Packing & Forwarding
  • Pre-Sales Service
  • After-Sales Service
  • Manufacturing Range
    • 1t. to 100t. Cap., up to 50-meter span and required Height of lift (for Higher Capacity and span please consult us)
    • 1t. Cap. Double Girder Goliath Crane
    • 2t. Cap. Double Girder Goliath Crane
    • 3t. Cap. Double Girder Goliath Crane
    • 5t. Cap. Double Girder Goliath Crane
    • 7.5t. Cap. Double Girder Goliath Crane
    • 10t. Cap. Double Girder Goliath Crane
    • 12.5t. Cap. Double Girder Goliath Crane
    • 15t. Cap. Double Girder Goliath Crane
    • 20t. Cap. Double Girder Goliath Crane
    • 25t. Cap. Double Girder Goliath Crane
    • 30t. Cap. Double Girder Goliath Crane
    • 40t. Cap. Double Girder Goliath Crane
    • 50t. Cap. Double Girder Goliath Crane
    • 60t. Cap. Double Girder Goliath Crane
    • 75t. Cap. Double Girder Goliath Crane
    • 80t. Cap. Double Girder Goliath Crane
    • 100t. Cap. Double Girder Goliath Crane
  • Specifications
    • Descriptions Specifications
    Capacity 1t.,2t.,3t.,5t.,7.5t.,10t.,12.5t,15t.,20t.,25t.,30t.,40t.,50t.,60t.,75t.,80t.,100t.
    Area Non-Hazardous/Hazardous as per customer requirement
    Test Load 125% of SWL
    Height of Lift 3 meters to 50 meters or as per customer requirements
    IS Code IS807, IS3177
    Type Double Girder
    Locations Indoor/Out door
    End Carriages The End Carriages are welded construction type and fabricated from plates or Std. section type constructions.
    Bridge Girders The girders are of plate fabricated box type construction design to sustain all stresses arising due to vertical & lateral forces with impact to which they are subjected. The maximum deflection of the main girder is limited to 1/750 the span of live loads including the weight of the trolley or hoist.
    Platform M.S. Checkered plate/anti-skid plate’s full-length platform shall be provided on one side of the bridge girder in double girder crane
    End Stopper Steel end stoppers are provided on either side of the bring to limit the motion of the trolley. All the buffers will employ springs for shack absorption.
    Steel Steel confirming to IS-2062 or equivalent is used in the manufacturing of the main load bearing.  (Mainly Essar or Sail make)
    Wheel Base As per span and IS code
    L.T. Drive System Twin drive type.
    Main-Hoisting 1 meter per minute to 20 meters per minute or as per customer’s requirements (micro speed will be provided on demand)
    L.T. 1 meter per minute to 120 meters per minute or as per customer’s requirements (micro speed will be provided on demand)
    C.T. 1 meter per minute to 120 meters per minute or as per customer’s requirements (micro speed will be provided on demand)
    Ele. Motors All motors are off S-4 duty, Squirrel cage ,40% CDF,150 S/hr., IP -55 with Class F insulation or as per required class and duty
    Brakes Electro-Hydraulic shoe type/ Electromagnetic Disc /AC & DC  Electromagnetic Shoe type brake shall be provided in Hoisting L.T. & C.T. These brakes are automatically released when the motor circuit is on and is applied the motor circuit is off
    Wire Rope & No. of aal Selected as per crane capacity and IS Code he makes of wire rope will be used Usha-martin
  • Standard Features
    1. Simple and optimum Design ensuring minimum dead weight, Wheel Load Headroom and easy to maintenance
    2. Easy to installation
    3. Reliable structure
    4. Higher efficiency to save power
    5. All motions are protected with Fail safe type brakes (which are applied when power supply is off and release when power supply is on.)
    6. All motions are protected with limit switches
    7. Rubber buffers are provided to extra protection against collision in case of limit switch failure
    8. Dustproof panel box with reputed make switch gear or as per customer’s approval
    9. 110 V Control voltage selected for protection of Crane operator against any electrical shock
    10. With electrical Interlocking to prevent simultaneous operation of opposite motion
    11. Using "C' Rail / I Section type C.T.  & Push button Festoon system it’s give long life and trouble free operation

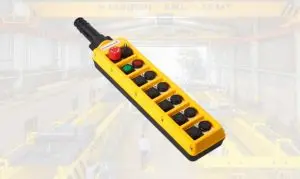

    12. Unbreakable, Handy, light weight PVC Pushbutton
    13. Coupling less L.T. & C.T. Motion up to 7.5 Hp, (Less mechanism less maintenance)
    14. VFD in Long Travel Motion, Smooth Start & Stop (Maximize the life of Mechanism)
    15. Own Make Gearbox so which are easy to maintenance and we can provide any parts at any time from our stock
    16. Platform with hand railing for easy, simple & safe maintenance of the crane extended partially or totally along the girder width
  • Optional Features
    1. Radio Remote Control / Cabin Control
    2. Dual speed for all motion
    3. VFD in all motion
    4. Siren While Traveling a crane
    5. Load Cell with Display to weigh a Load or protection against overload
    6. Special Dimension Hook
    7. Other Reputed Brand Gearbox
    8. Drag Chain in Festoon system
    9. Protective Paints / Coating
  • Safety
    1. Over Lowering or over hoisting prevention limit switch
    2. Hook Safety Latch
    3. Overload Relays
    4. Travelling limit switch
    5. Rubber buffer
    6. Brakes in Hoisting as well as c.t & L.T.
    7. Main Switch
    8. On/ off switch in push button /Emergency stop
    9. MCB /fuse
    10. All 4 core cables with Earth cable
    11. Maintenance platform
    12. Siren in goliath crane
    13. Anti-collision device when more than one crane on same bay
  • Packing & Forwarding
    • Electric & Small parts are packed by high quality wooden crate to reduce distortion in conveying; Main beams, end carriages and electric hoist are packed by Wrapping of plastic roll It can reduce abrasion when transport.
  • Pre-Sales Service
    1. One to one service guarantees you the best purchasing experience.
    2. Strong production capacity and professional workmen guarantee you the short delivery.
    3. Strict delivery inspection guarantees you the high quality products.
    4. The short delivery time.
  • After-Sales Service
    1. One year warranty for Cranes
    2. Providing free quick-wear part
    3. Low charge for continue maintenance when warranty is expired
    4. Exclusive engineer support at any time.
    5. Highly professional training to end-users

Other facilities of using Double Beam Floor Running Goliath Crane

We are happy to announce that we are the best Double Beam Floor Running Goliath Crane manufacturers in India. We mainly concentrate on the materials that are required while manufacturing these types of cranes. We manufacture the crane in such a manner so that we can use it conveniently and as per the demand of the industries. The mode of handling the crane is so easier that it can be done by anyone within a short span of time.If we wish we can also manufacture the crane as per the wish of the client. We are always ready to customize the cranes as and when required. These types of cranes can also be operated very smoothly by the users.

Contact Us Now

Various Components Double Beam Floor Running Goliath Crane
